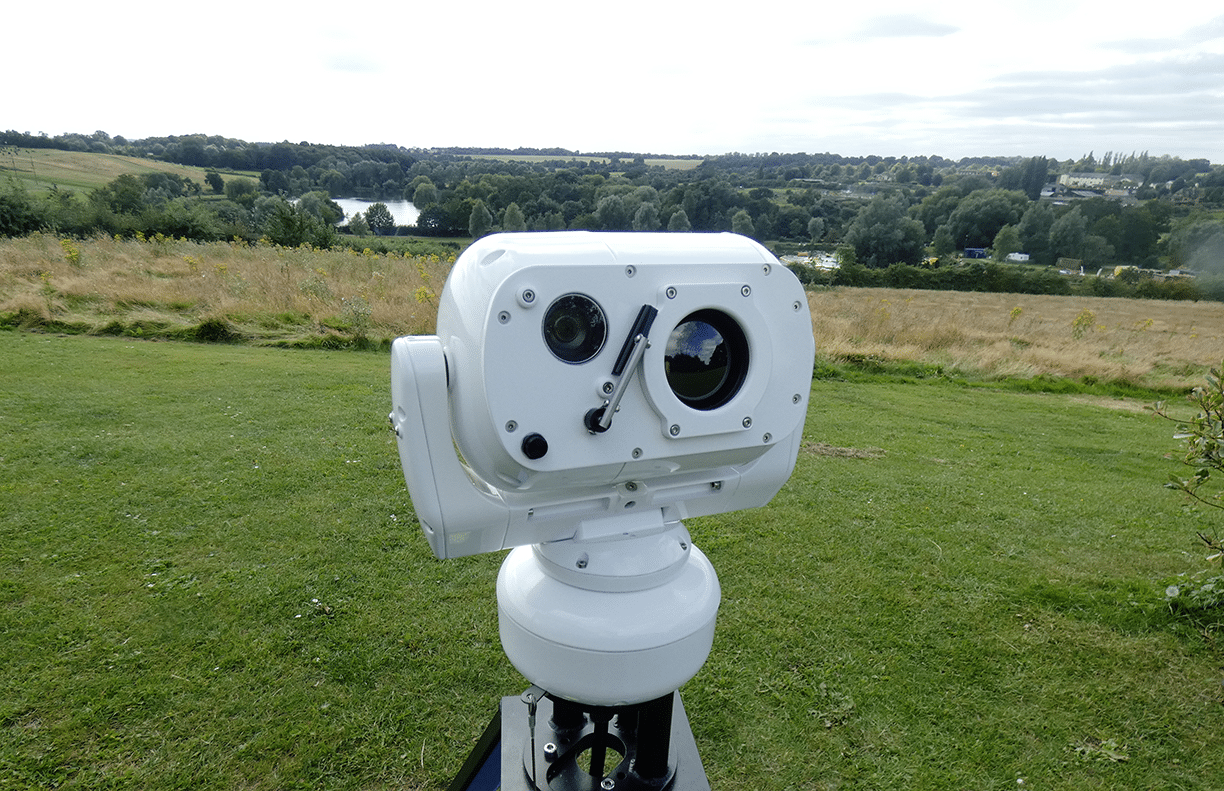

The EVO2 range utilises the very latest in both thermal core and
lens technology, providing advanced surveillance capabilities in
the most extreme conditions. Available with fixed FoV lenses,
the Oculus EVO2 range also benefits from a choice of three
thermal sensor resolutions; 640 x 512 (12μm) and 1024 x 768 XGA
(12μm).

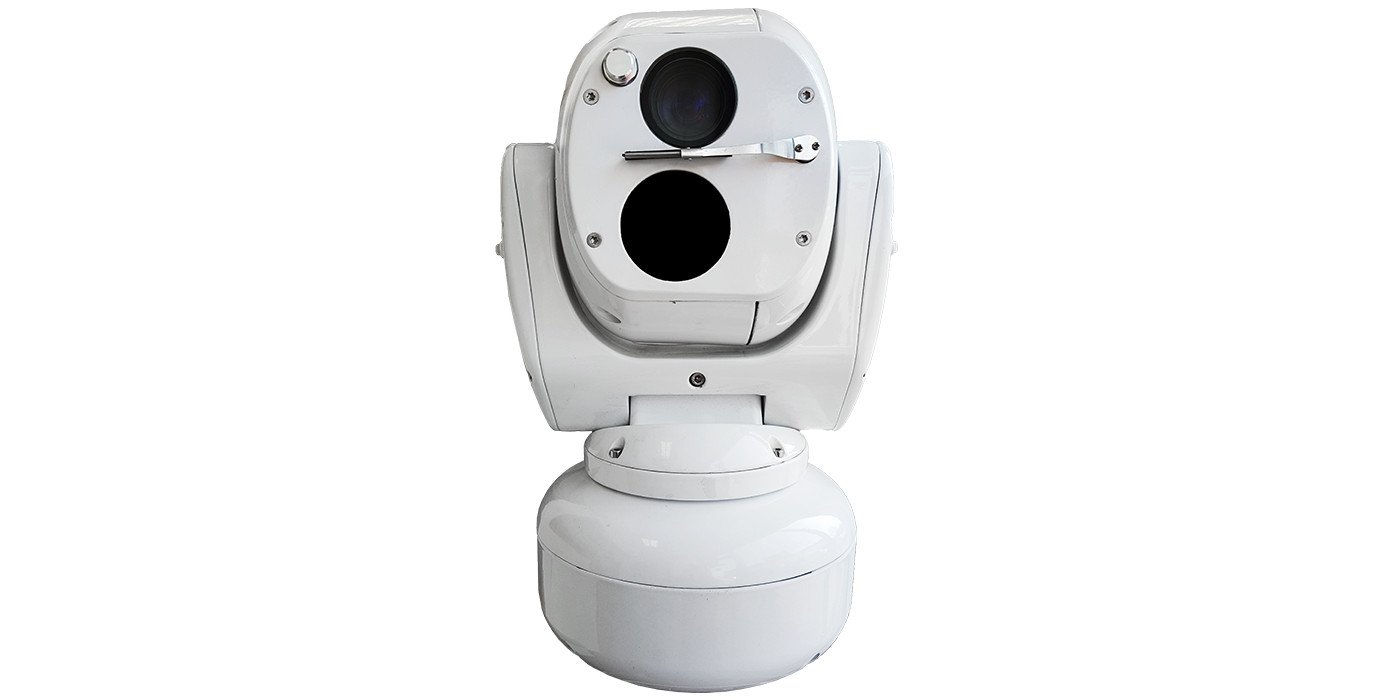

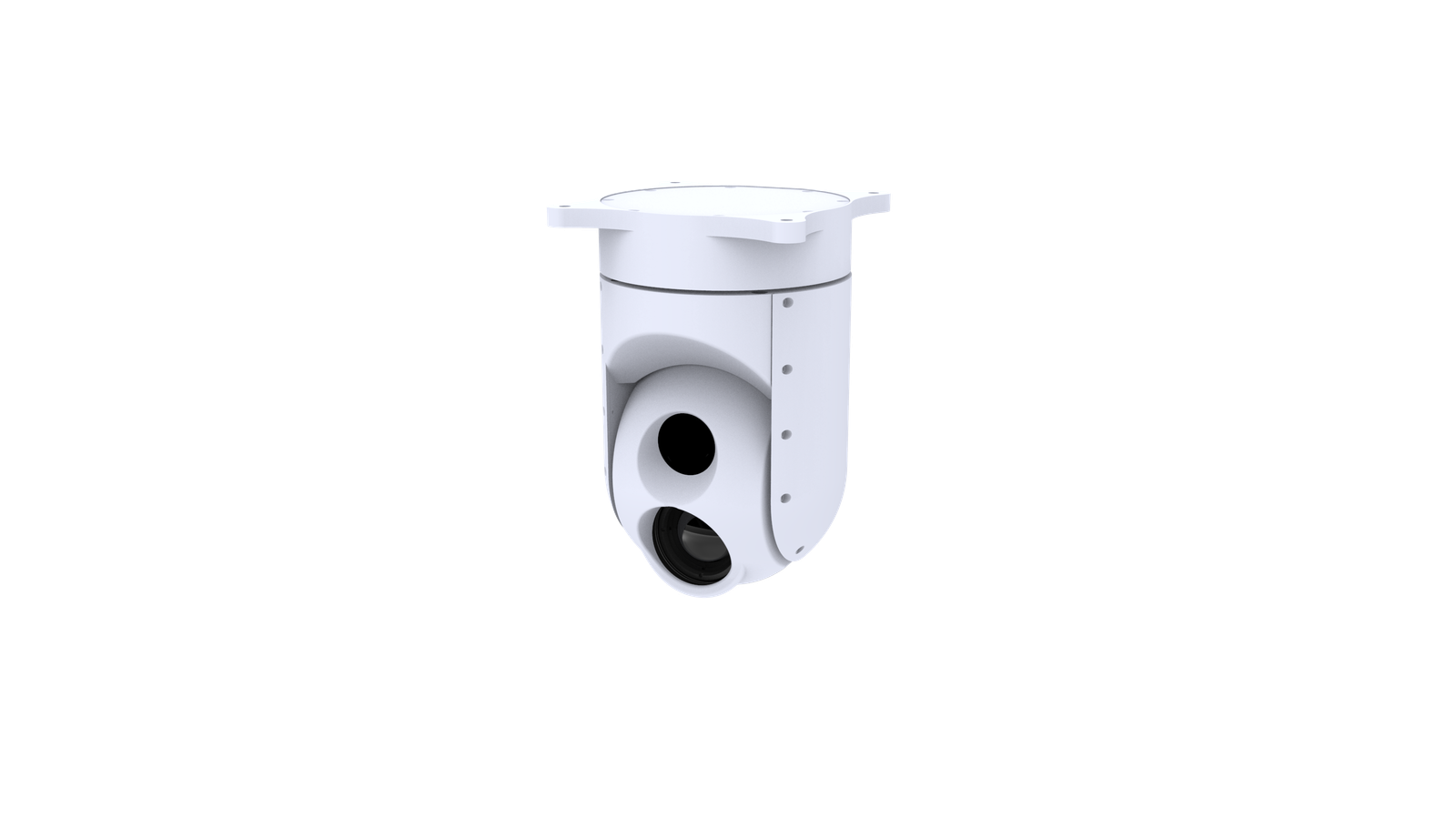

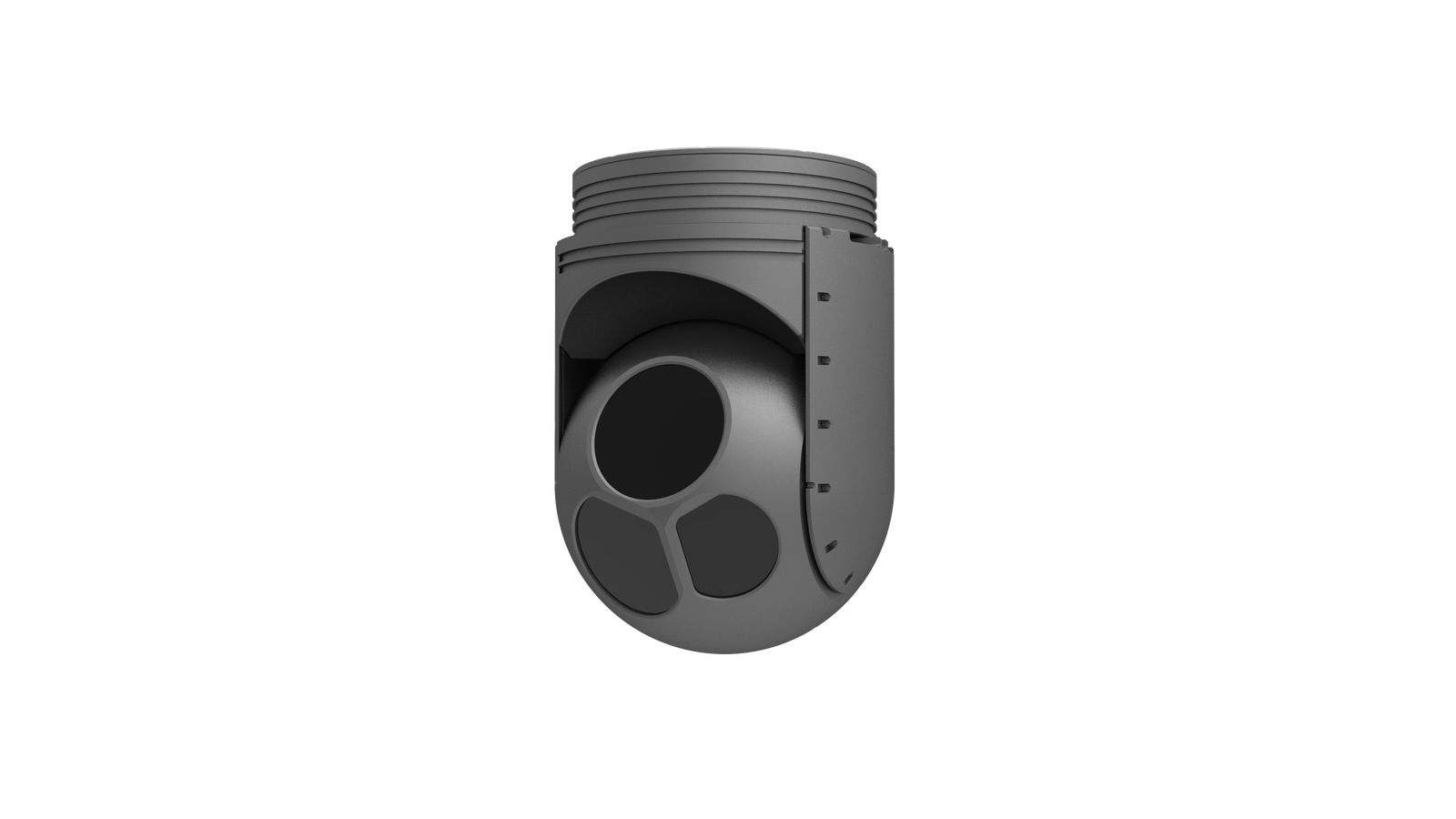

The Oculus is a compact, ruggedized,
continuous rotation dual sensor PTZ camera utilising an uncooled
LWIR thermal sensor with a range of fixed lenses up to 35mm and
a HD visible sensor.
The Oculus is a compact, ruggedized, continuous rotation dual
sensor PTZ camera utilising an uncooled LWIR thermal sensor with
a range of fixed lenses up to 50mm and a HD visible sensor.
These camera sensors are housed within the Oculus's
rugged enclosure, which also provides fast and accurate camera
positioning. Tested to an IP67 level of environmental protection
and hard anodised, the Oculus can be used in the most harsh and
challenging applications including coastal surveillance,
perimeter security and vehicle mounted installations.
Thermal camera detection* ranges up to 1.1km (human)
and 3.39km (vehicle).
Uncooled LWIR thermal sensors with
fixed lens options up to 50mm
30x zoom HD visible sensor
with a wiper as standard
360° continuous rotation with pan
and tilt speeds up to 180° per second
High levels of
camera positioning accuracy: 0.01°
Mounting options
include hanging, upright or vehicle

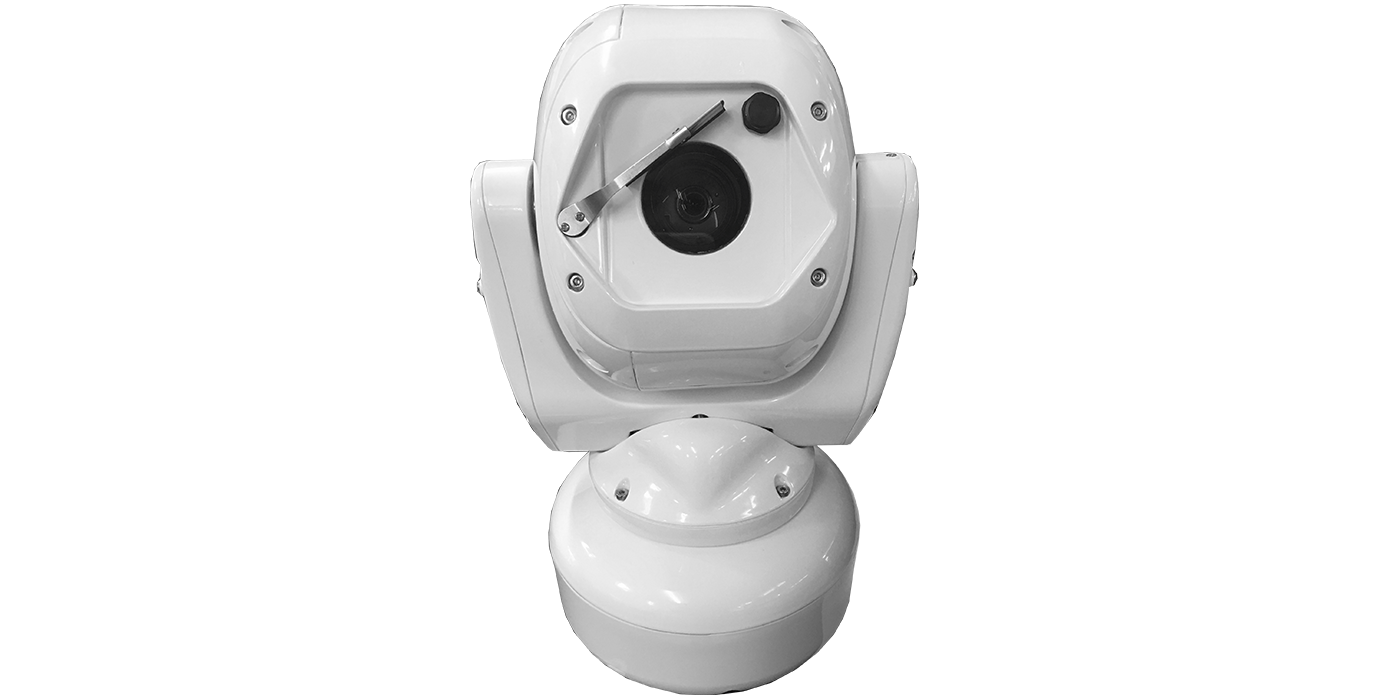

The Oculus HD is a compact, ruggedized, continuous rotation PTZ
camera utilising a 30x zoom low light HD visible Starvis sensor.
This sensor can be paired with a range of optional illuminators
(white light, infrared and hybrid).
The visible
sensor is housed within the Oculus's rugged enclosure, which
also provides fast and accurate camera positioning. Tested to an
IP67 level of environmental protection and hard anodised, the
Oculus can be used in the most harsh and challenging
applications including coastal surveillance, perimeter security
and vehicle mounted installations

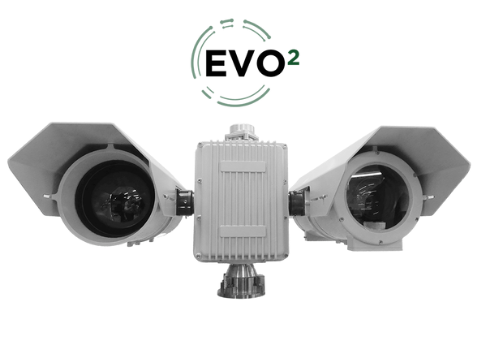

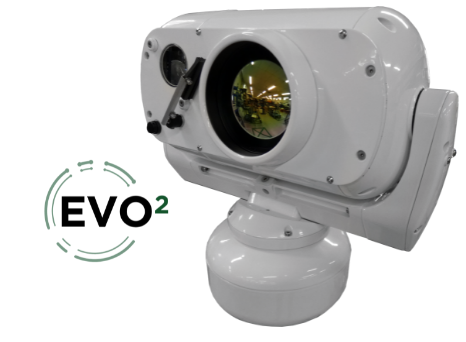

The EVO2 range utilises the very latest in both thermal sensor
and lens technology, providing advanced surveillance
capabilities in the most extreme conditions. Available with
either zoom or fixed FoV lenses, the Aeron EVO2 range also
benefits from a choice of two thermal sensor resolutions; 640 x
512 (12μm) and XGA 1024 x 768 (12μm)

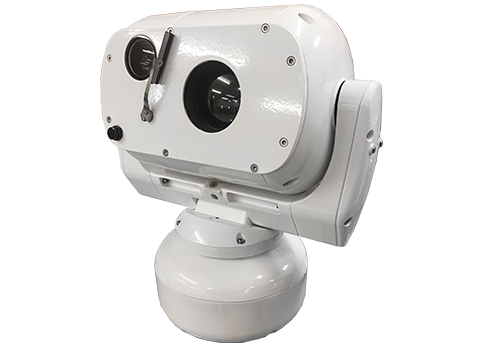

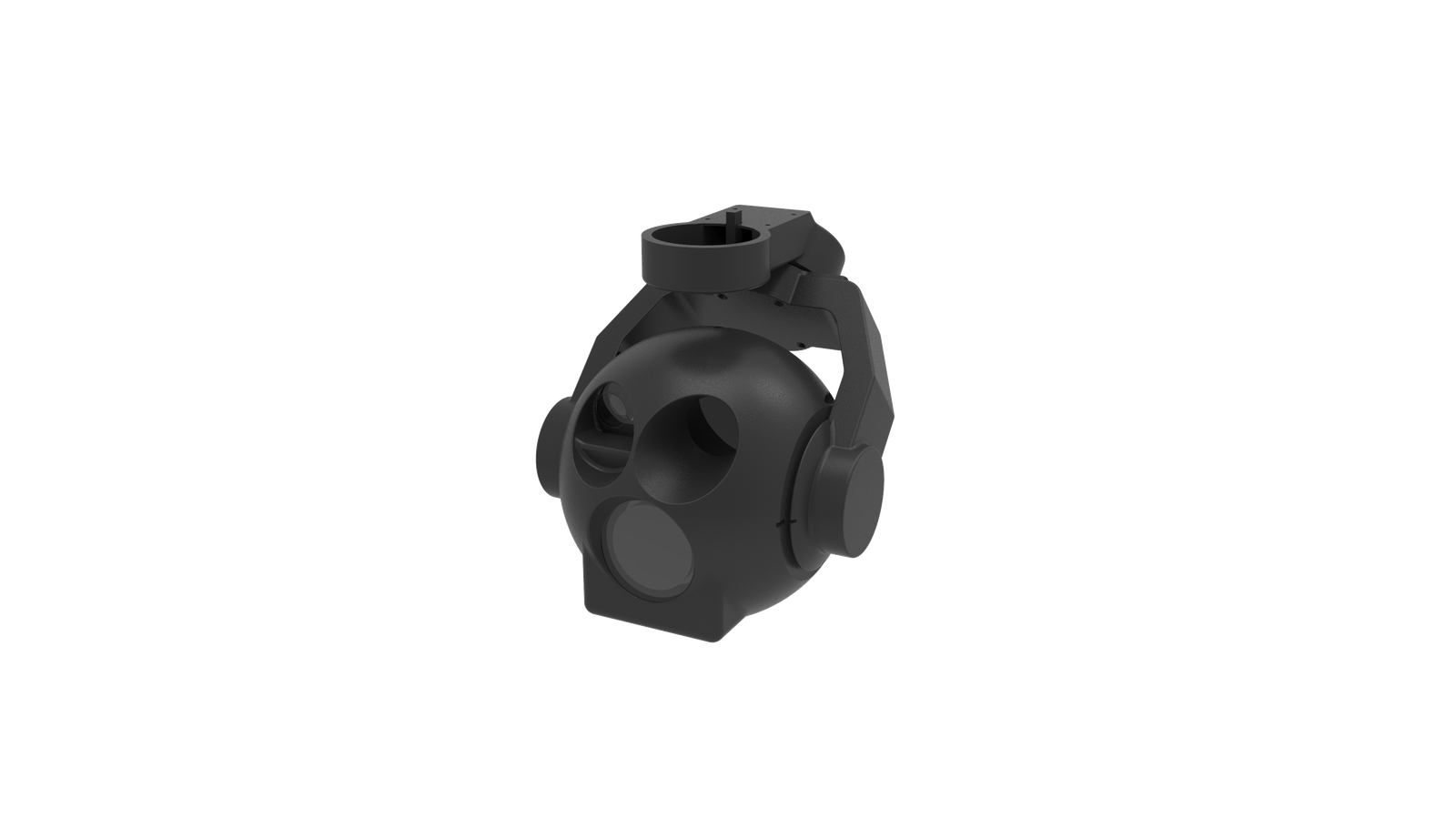

The Aeron EVO2
is an accurate, rugged, continuous rotation dual sensor PTZ
camera utilising an uncooled LWIR thermal sensor with a range of
fixed lenses (up to 100mm), zoom lenses (up to 150mm), and a HD
visible sensor.
The camera sensors are housed within
the Aeron's rugged enclosure, which also provides fast and
accurate camera positioning. Tested to an IP67 level of
environmental protection and hard anodised, the Aeron can be
used in the most harsh and challenging applications such as
maritime, border security and vehicle mount installations
- Range of resolutions up to 1024 x 768 (XGA)
- Pixel pitch down to 12μm (improves range by up to
20%)
- Push autofocus as standard on selected
thermal zoom lenses
- 30x zoom HD visible sensor
with a wiper as standard
- 360° continuous rotation
with pan and tilt speeds up to 160° per second

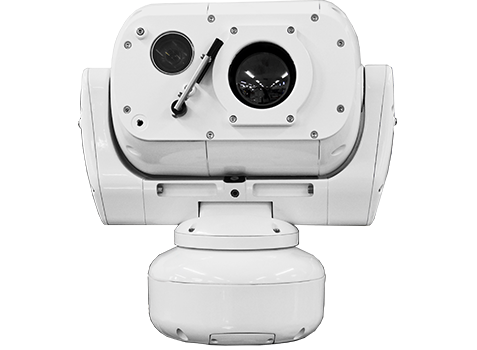

The Aeron Scout is an accurate, rugged, continuous rotation dual
sensor PTZ camera utilising an uncooled LWIR thermal sensor with
a range of fixed lenses up to 100mm and a HD visible sensor
These camera sensors are housed within the Aeron's
rugged enclosure, which also provides fast and accurate camera
positioning. Tested to an IP67 level of environmental protection
and hard anodised, the Aeron can be used in the most harsh and
challenging applications such as maritime, border security and
vehicle mounted installations.
- Thermal camera detection* ranges up to 2.2km
(human) and 6.7km (vehicle)
- Uncooled LWIR thermal
sensors with fixed lens options up to 100mm
- 360°
continuous rotation with pan and tilt speeds up to 160° per
second
- High levels of camera positioning accuracy:
0.01°
- Mounting options include inverted, upright
or inclined
The Aeron Ranger is an accurate, rugged, continuous rotation
dual sensor PTZ camera utilising an uncooled LWIR thermal sensor
with a range of zoom lenses up to 150mm and a HD visible sensor.
These camera sensors are housed within the Aeron's
rugged enclosure, which also provides fast and accurate camera
positioning. Tested to an IP67 level of environmental protection
and hard anodised, the Aeron can be used in the most harsh and
challenging applications such as maritime, border security and
vehicle mount installations.
- Thermal camera
detection* ranges up to 3.29km (human) and 10.1km (vehicle)
- 30x zoom HD visible sensor with a wiper as
standard
- 360° continuous rotation with pan and
tilt speeds up to 160° per second
-Compact and
ruggedised for extreme and marine environments
-
Mounting options include inverted, upright or inclined
