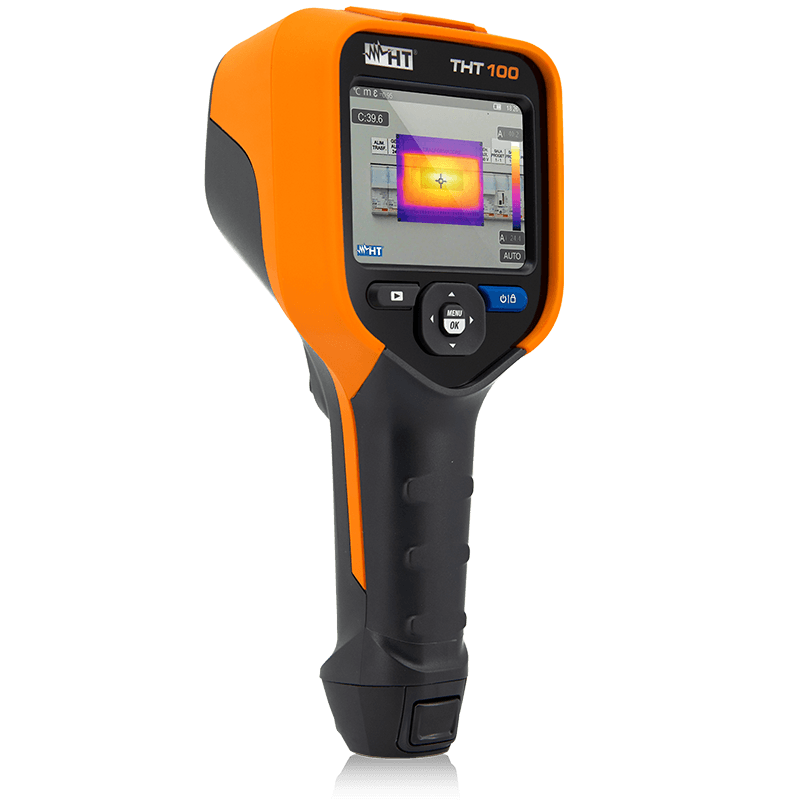

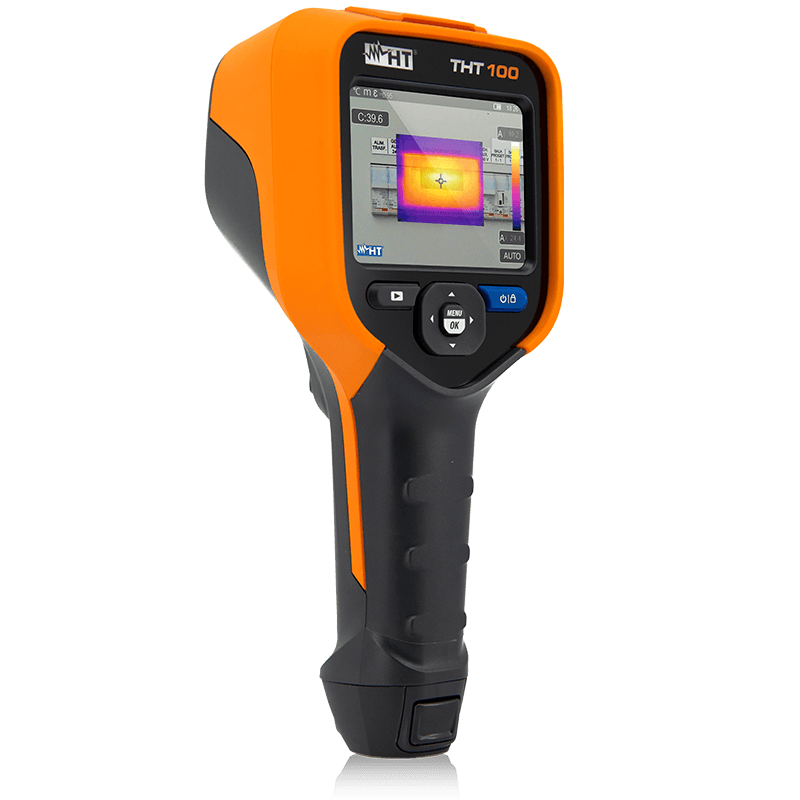

THT100 is the new professional thermal camera equipped with a high
resolution 80 x 80pxl IR sensor which makes it suitable for use in electrical, mechanical,
plumbing, ventilation and refrigeration systems. It is equipped with a measuring range of -20° C
÷ 650.0° C and a field of view of 21° x 21°, producing high quality thermal images and videos,
as well as allowing AutoFusion and Picture in Picture functions. The thermal imaging camera is
equipped with a modern internal icon structure and a high brightness capacitive touch-screen
display. It is also equipped with Wi-Fi connection, as well as being compatible with the new and
convenient HT Pro Camera application.
IR Resolution: 80 x 80 pxl
Temperature range: -20° ÷ 650°C
Image frequency: 50Hz
Thermal sensitivity / NETD: '<'0.05°C @ 30°C / 50mK
Field of view (FOV): 21° x
21°

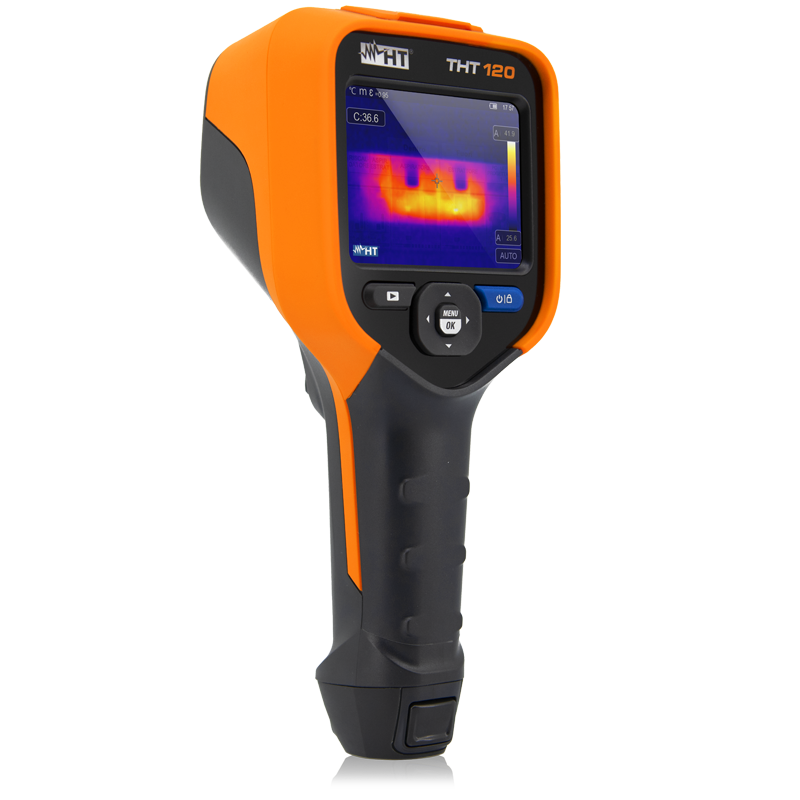

THT120 is the new professional thermal camera equipped with a high
resolution 120 x 120pxl IR sensor which makes it suitable for use in electrical, mechanical,
plumbing, ventilation and refrigeration systems. It is equipped with a measuring range of -20° C
÷ 650.0° C and a field of view of 21° x 21°, producing high quality thermal images and videos,
as well as allowing AutoFusion and Picture in Picture functions. The thermal imaging camera is
equipped with a modern internal icon structure and a high brightness capacitive touch-screen
display. It is also equipped with Wi-Fi connection, as well as being compatible with the new and
convenient HT Pro Camera application.
IR Resolution: 120 x 120 pxl
Temperature range: -20° ÷ 650°C
Image frequency: 50Hz
Thermal sensitivity / NETD: '<'0.05°C @ 30°C / 50mK
Field of view (FOV): 15.6° x
15.6°

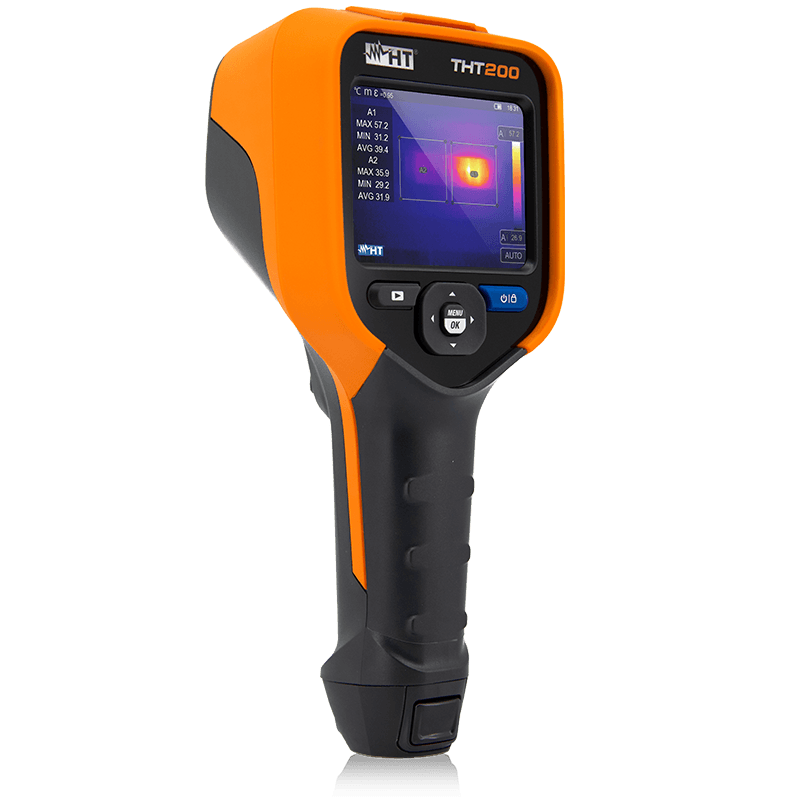

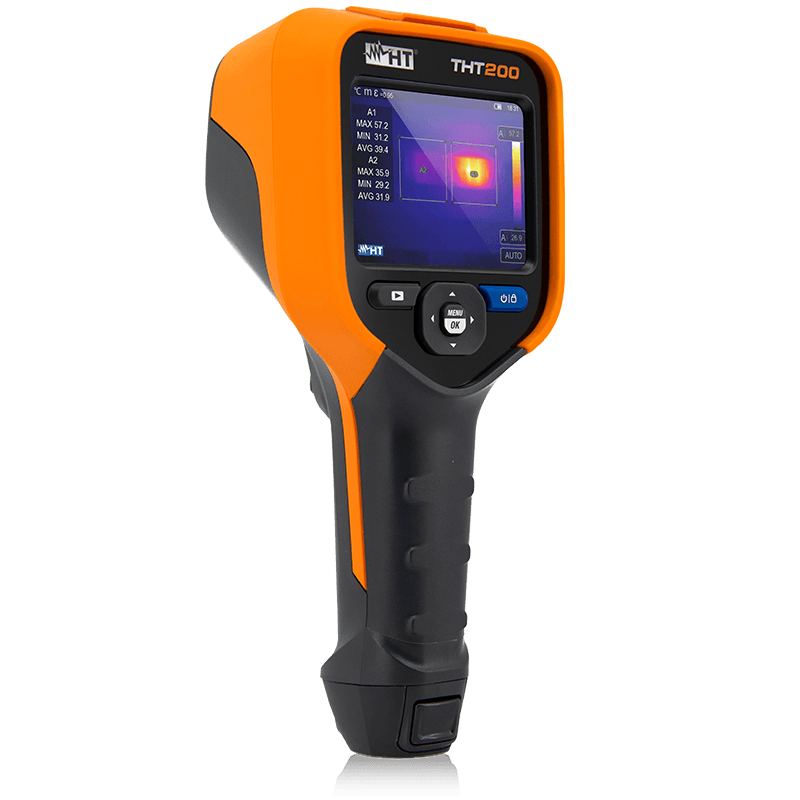

THT200 is the new professional thermal camera equipped with a high
resolution 160 x 120pxl IR sensor that makes it suitable for use in electrical, mechanical,
plumbing, ventilation and refrigeration systems. It is equipped with a measuring range of -20°C
÷ 650.0°C and a field of view of 20.7° x 15.6°, producing high quality thermal images and
videos, as well as allowing AutoFusion and Picture in Picture functions. The thermal imaging
camera is equipped with a modern internal icon structure and a high brightness capacitive
touch-screen display.
It is also equipped with Wi-Fi connection, as well as being compatibile with the new and
convenient HT Pro Camera application.
IR Resolution: 160 x 120 pxl
Temperature range: -20° ÷ 650°C
Image frequency: 50Hz
Thermal sensitivity / NETD: '<'0.05°C @ 30°C / 50mK
Field of view (FOV): 20.7° x
15.6°

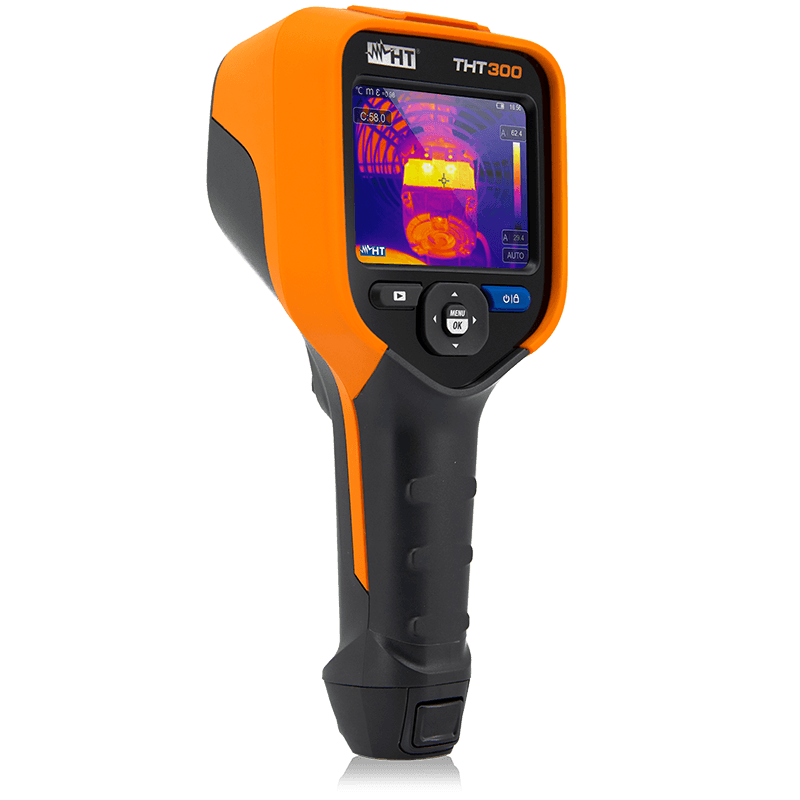

THT300 is the new professional thermal imaging camera equipped with
a high resolution 384 x 288pxl IR sensor which makes it suitable for use in electrical,
mechanical, plumbing, ventilation and refrigeration systems. It is equipped with a measuring
range of -20 ° C ÷ 650.0 ° C and a field of view of 41.5 ° x 31.1 °, producing high quality
thermal images and videos, as well as allowing AutoFusion and Picture in Picture functions. The
thermal imaging camera is equipped with a modern internal icon structure and a high brightness
capacitive touch-screen display.
It is also equipped with Wi-Fi connection, as well as being compatible with the new and
convenient HT Pro Camera application.
IR Resolution: 384 x 288 pxl
Temperature range: -20° ÷ 650°C
Image frequency: 50Hz
Thermal sensitivity / NETD: '<'0.05°C @ 30°C / 50mK
Field of view (FOV): 41.5° x
31.1°

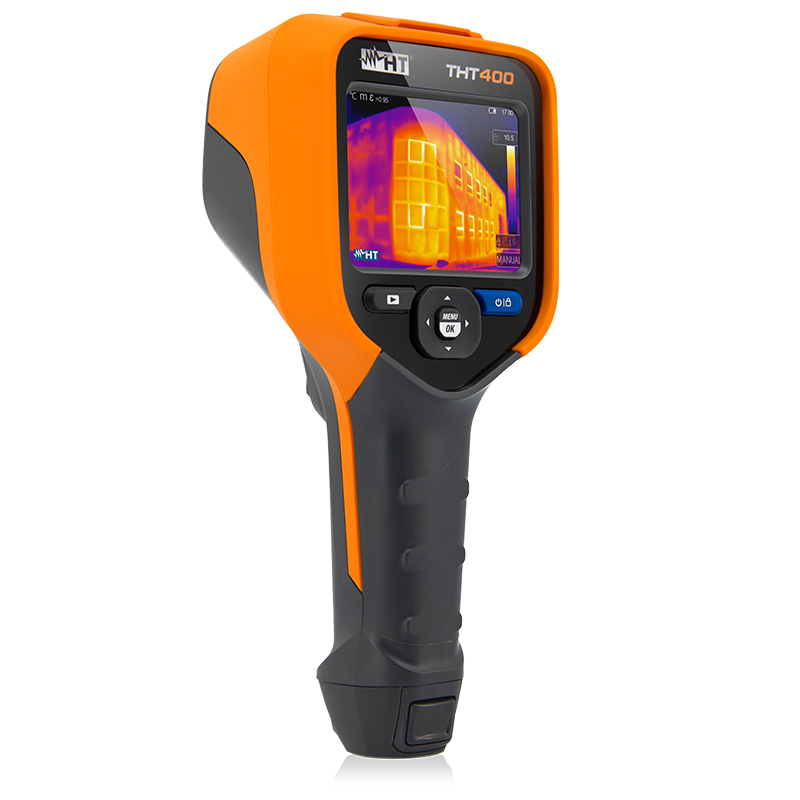

THT400 is the new professional thermal imaging camera equipped with
a high resolution 640 x 480pxl IR sensor which makes it suitable for use in electrical,
mechanical, plumbing, ventilation and refrigeration systems. It is equipped with a measuring
range of -20°C ÷ 550.0°C and a field of view of 31.9°x 25.7°, producing high quality thermal
images and videos, as well as allowing AutoFusion and Picture in Picture functions. The thermal
imaging camera is equipped with a modern internal icon structure and a high brightness
capacitive touch-screen display.
It is also equipped with Wi-Fi connection, as well as being compatible with the new and
convenient HT Pro Camera application.
Built-in camera: 2 MP, focus free
Temperature range: -20° ÷ 650°C
Image frequency: 25Hz
Thermal sensitivity / NETD: '<'0.05°C @ 30°C / 50mK
Field of view (FOV): 31.9° x
25.7°

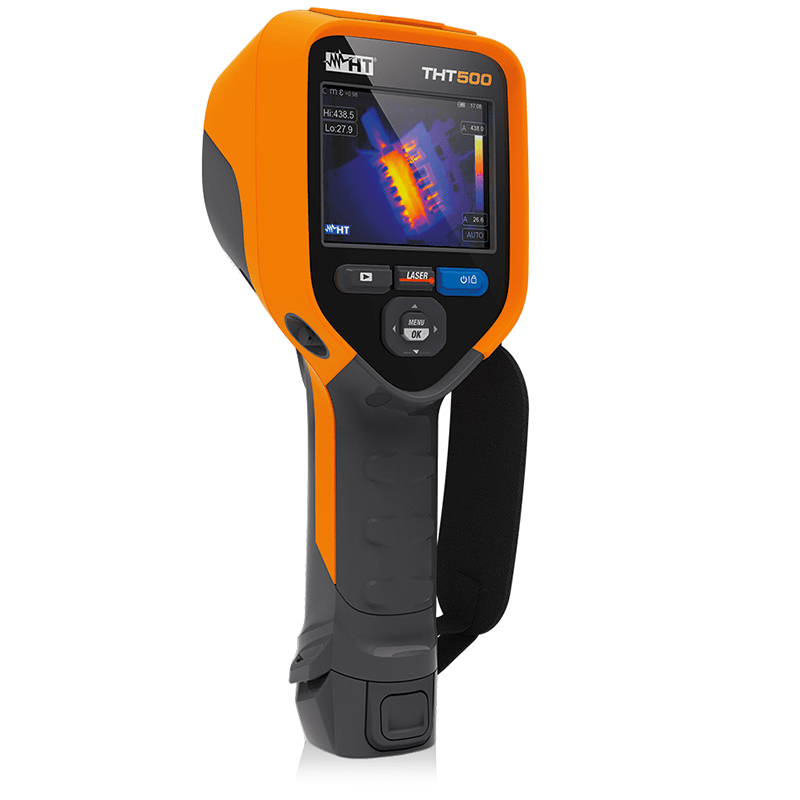

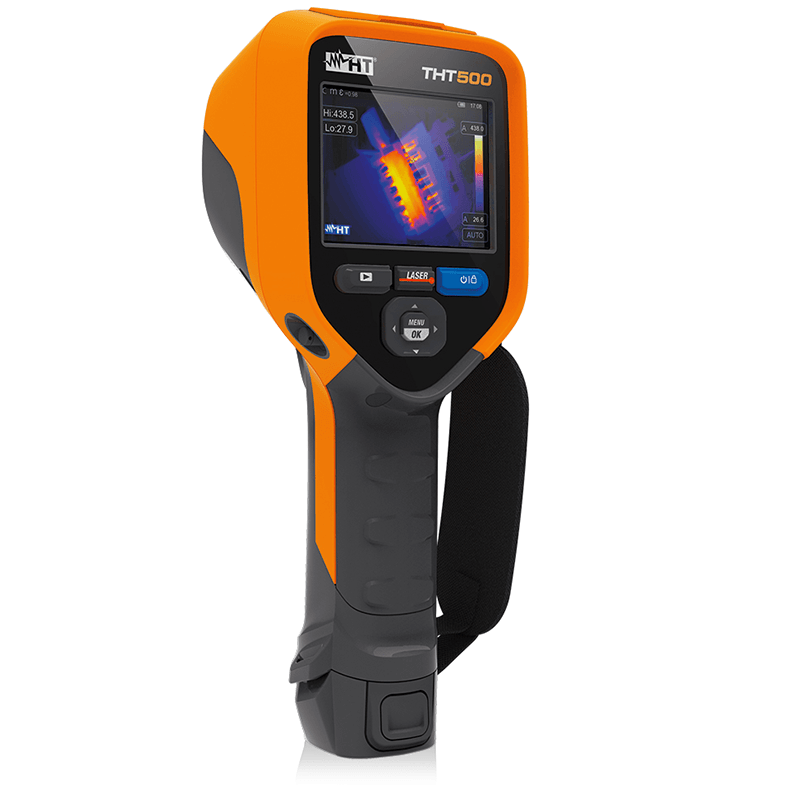

THT500 is the new professional thermal camera equipped with a high
resolution 160 x 120pxl IR sensor that makes it suitable for use in electrical, mechanical,
plumbing, ventilation, refrigeration and electricity distribution systems. It is equipped with a
measuring range of -20°C ÷ 650.0°C and a field of view of 17.3° x 13°, producing high resolution
thermal images and videos, as well as allowing AutoFusion and Picture in Picture functions. It
also has an ergonomic strap and an integrated laser distance meter, which allows you to measure
the distance to the subject under analysis. The thermal imaging camera is equipped with a modern
internal icon structure and a high brightness capacitive touch-screen display. Thanks to the
Wi-Fi connection it is possible to download the thermograms on your mobile device and through
the new and convenient HT Pro Camera application you can create PDF reports and share them
quickly.
IR Resolution: 160 x 120 pxl
Temperature range: -20° ÷ 650°C
Image frequency: 50Hz
Thermal sensitivity / NETD: '<'0.05°C @ 30°C / 50mK
Field of view (FOV): 17.3° x
13°

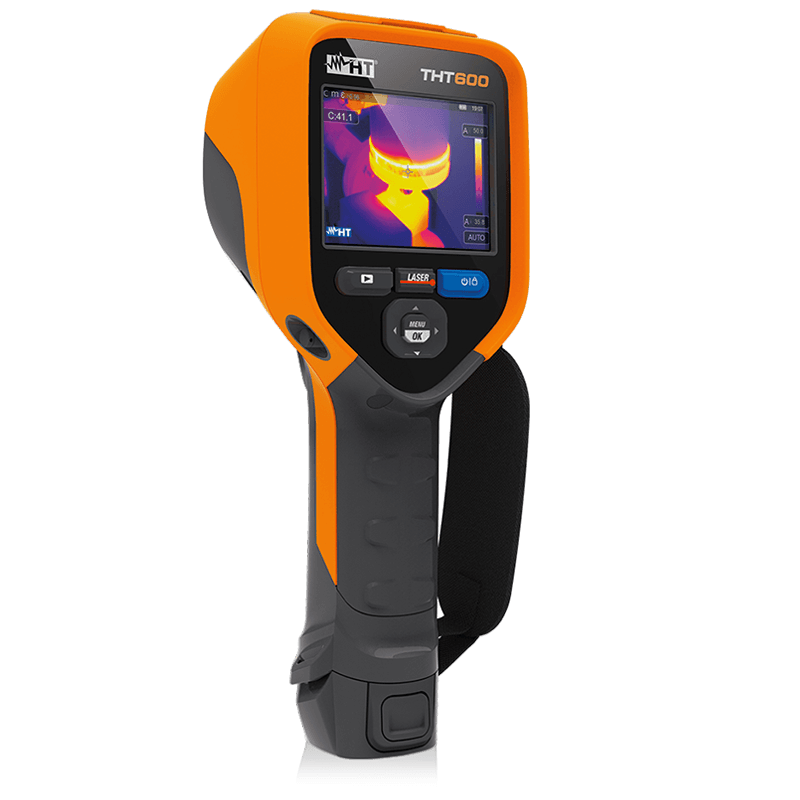

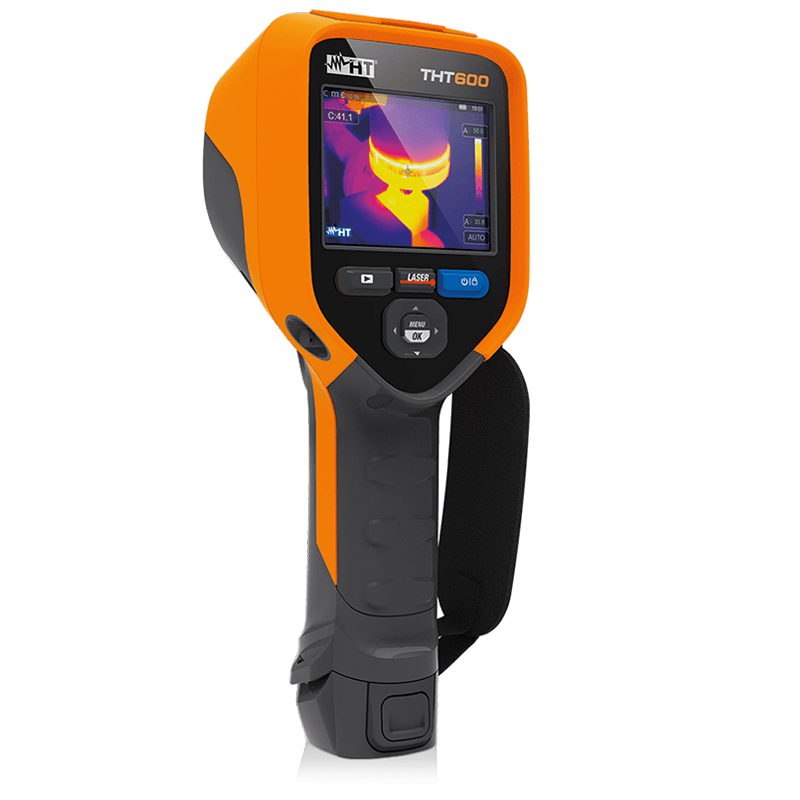

THT600 is the new professional thermal imaging camera equipped with
a high resolution 384x288pxl IR sensor. which makes it suitable for both industrial and
construction use and, above all, for human temperature screening. It is equipped with two
specific measurement ranges, one standard and one for Screening mode: -20 ° C ÷ 650.0 ° C and
32.0 ° C ÷ 42.0 ° C, producing high resolution thermal images and videos. The peculiarity of the
instrument is the icon structure inside a color display with high brightness capacitive
touch-screen.
IR Resolution: 384 x 288 pxl
Temperature range: -20° ÷ 650°C
Image frequency: 50Hz
Thermal sensitivity / NETD: '<'0.05°C @ 30°C / 50mK
Field of view (FOV): 17° x
12.7°

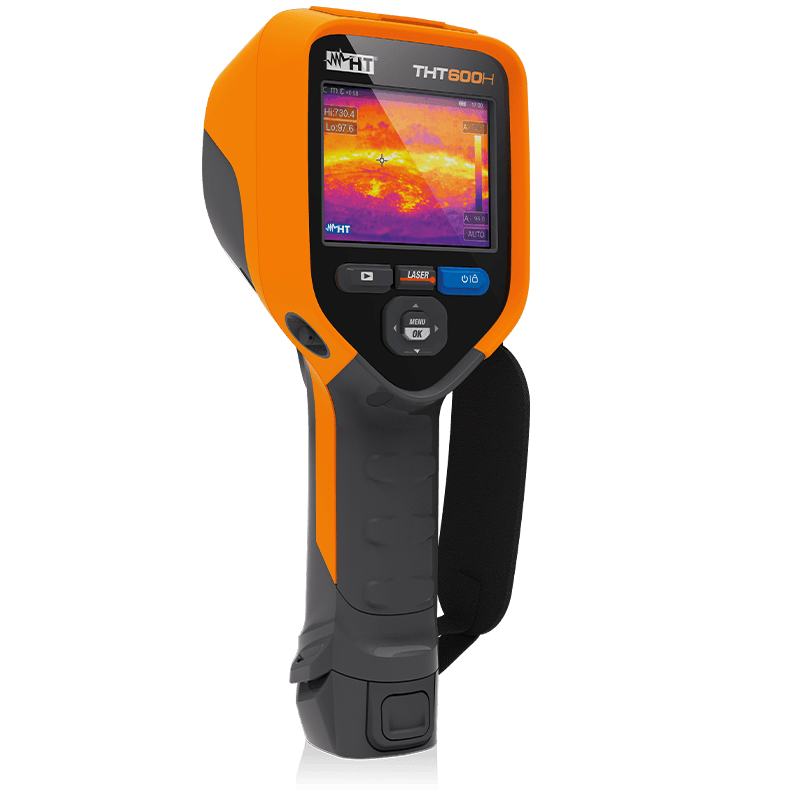

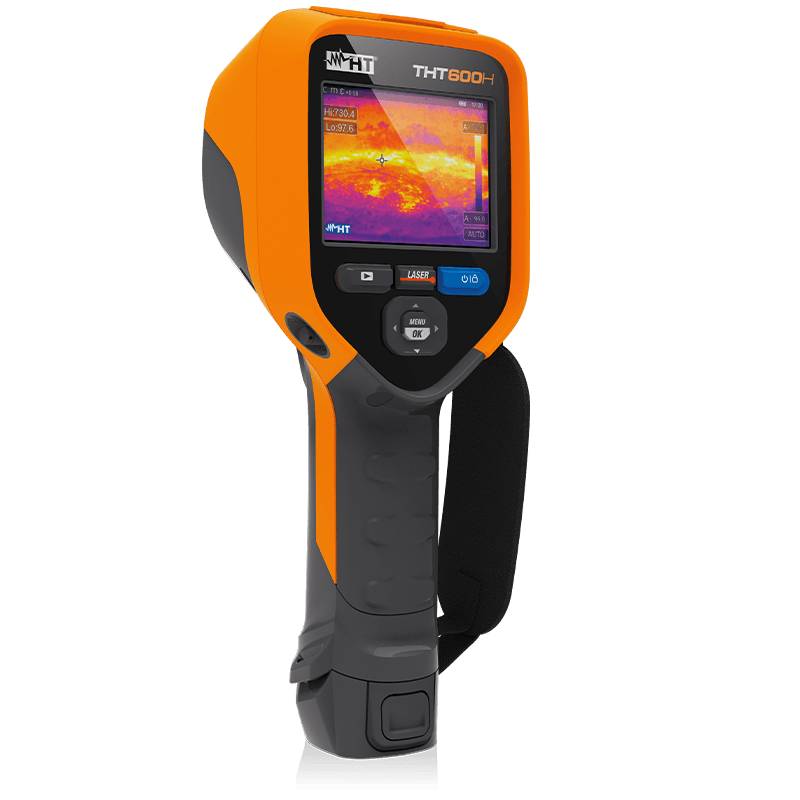

THT600H is the new professional thermal camera equipped with a high
resolution 384x288pxl IR sensor and a specific measuring range for high temperatures -20°C ÷
1200°C which makes it suitable for both industrial and manufacture monitoring. It features a
17.3°x 12.7° field of view, producing high resolution thermal images and videos, as well as
enabling AutoFusion and Picture in Picture functions. It also has an ergonomic strap and an
integrated laser distance meter, which allows you to measure the distance to the subject under
analysis. The thermal imaging camera is equipped with a modern internal icon structure and a
high brightness capacitive touch-screen display. Thanks to the Wi-Fi connection it is possible
to download the thermograms on your mobile device and through the new and convenient HT Pro
Camera application you can create PDF reports and share them quickly.
IR Resolution: 384 x 288 pxl
Temperature range: -20° ÷ 1200°C
Image frequency: 50Hz
Thermal sensitivity / NETD: '<'0.05°C @ 30°C / 50mK
Field of view (FOV): 17° x
12.7°

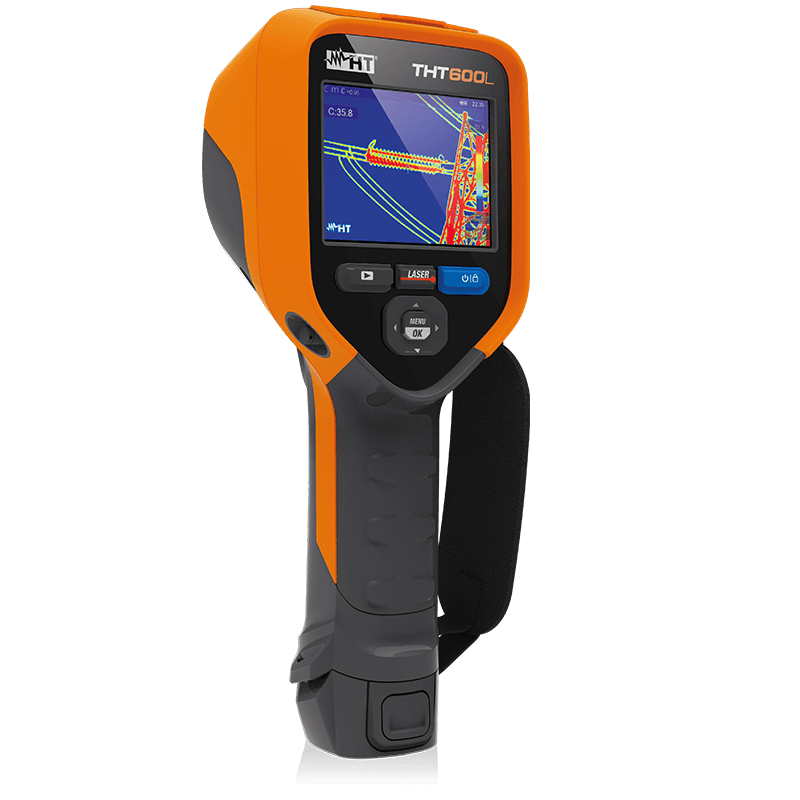

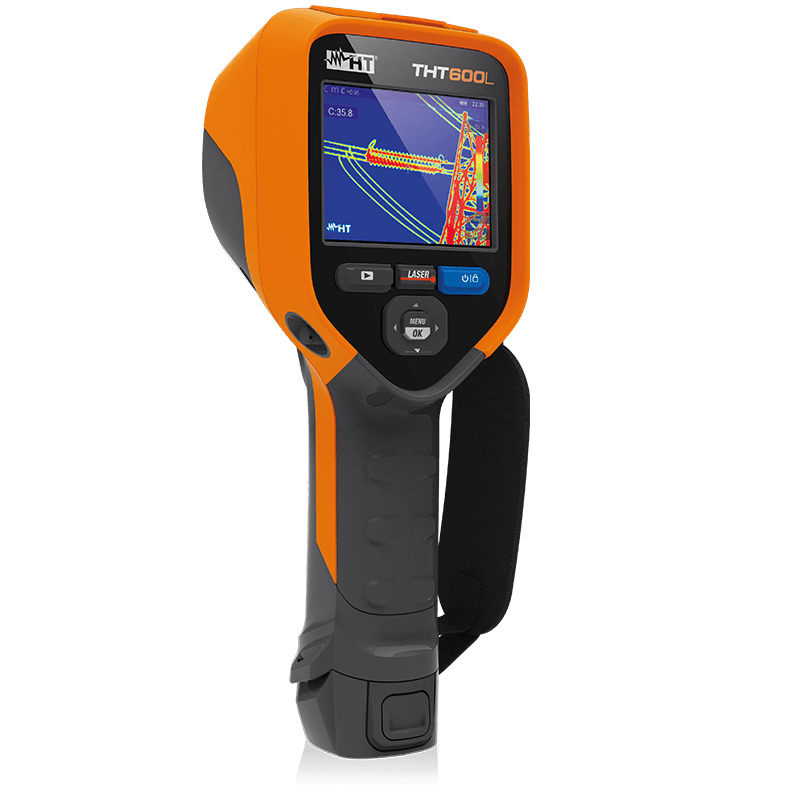

THT600L is the new professional thermal camera equipped with a high resolution 384x288pxl IR
sensor and FOV field of view of 9.8° x 7.3° to inspect small elements at a great distance, which
makes it suitable for both industrial and construction use, but especially in the field of
electricity distribution. It has AutoFusion and Picture in Picture functions, an ergonomic strap
and an integrated laser distance meter, which allows you to measure the distance to the subject
under analysis. The thermal camera is equipped with a modern internal icon structure and a high
brightness capacitive touch-screen display. Thanks to the Wi-Fi connection it is possible to
download the thermograms on your mobile device and through the new and convenient HT Pro Camera
application you can create PDF reports and share them quickly.
IR Resolution: 384 x 288 pxl
Temperature range: -20° ÷ 650°C
Image frequency: 50Hz
Thermal sensitivity / NETD: '<'0.05°C @ 30°C / 50mK
Field of view (FOV): 9.8° x
7.3°

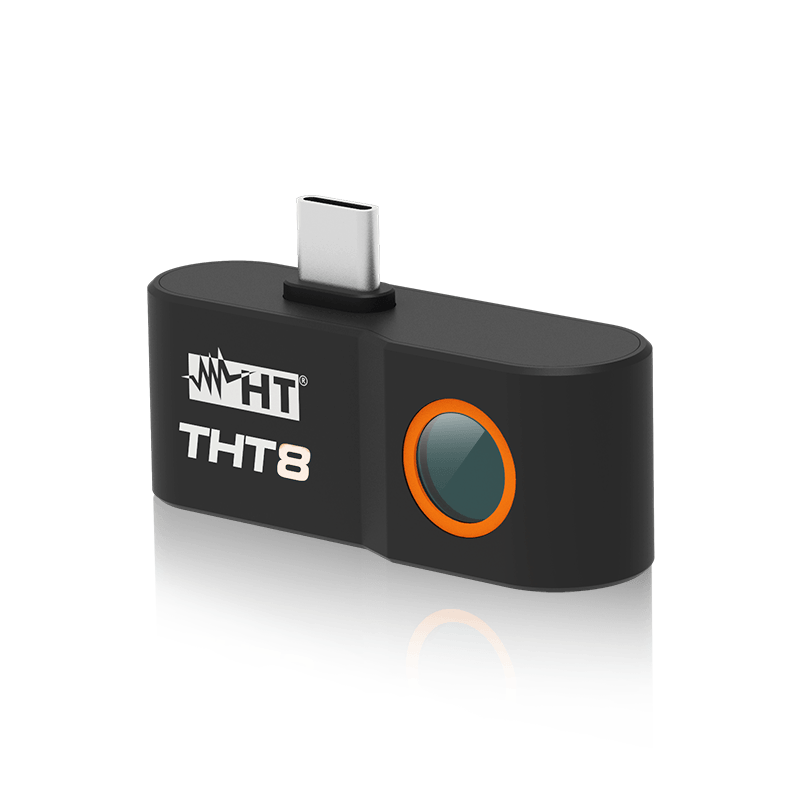

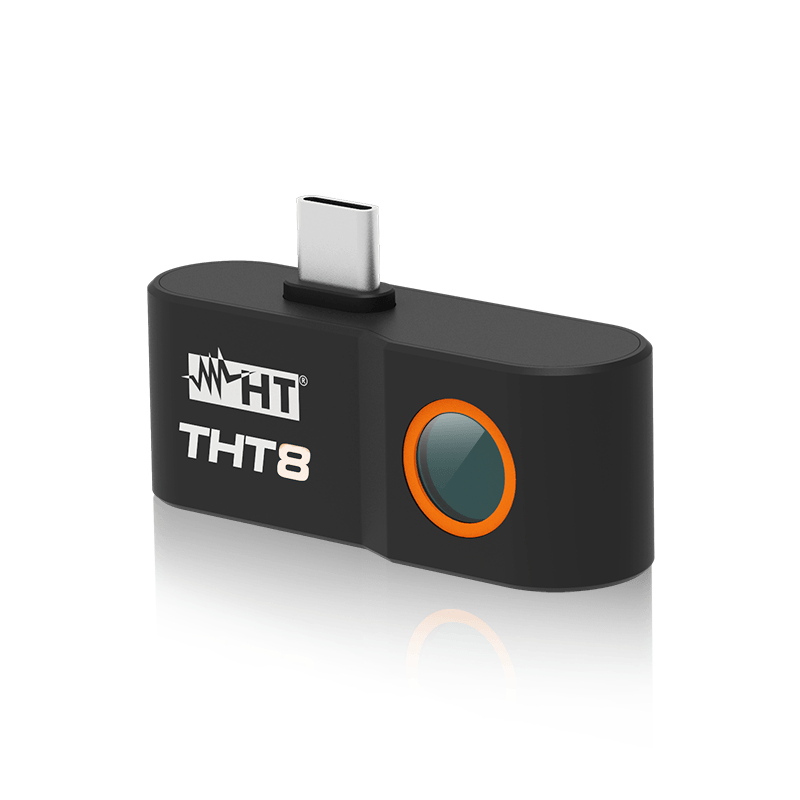

THT8 is the new ultra-compact and pocket-sized thermal camera equipped with a high resolution
120x90pxl IR sensor, a measuring range of -20°C ÷ 400°C and a field of view of 50°x 38°, which
makes it suitable for common and frequent hydraulic, mechanical or electrical maintenance.
Thanks to its small size it is perfect to be connected directly to your smartphone, and to be
used via the new HT Smart Camera application (available only for Android).
IR Resolution: 120 x 90 pxl
Temperature range: -20° ÷ 400°C
Image frequency: 25Hz
Thermal sensitivity / NETD: '<'0.05°C @ 30°C / 50mK
Field of view (FOV): 50° x
38°

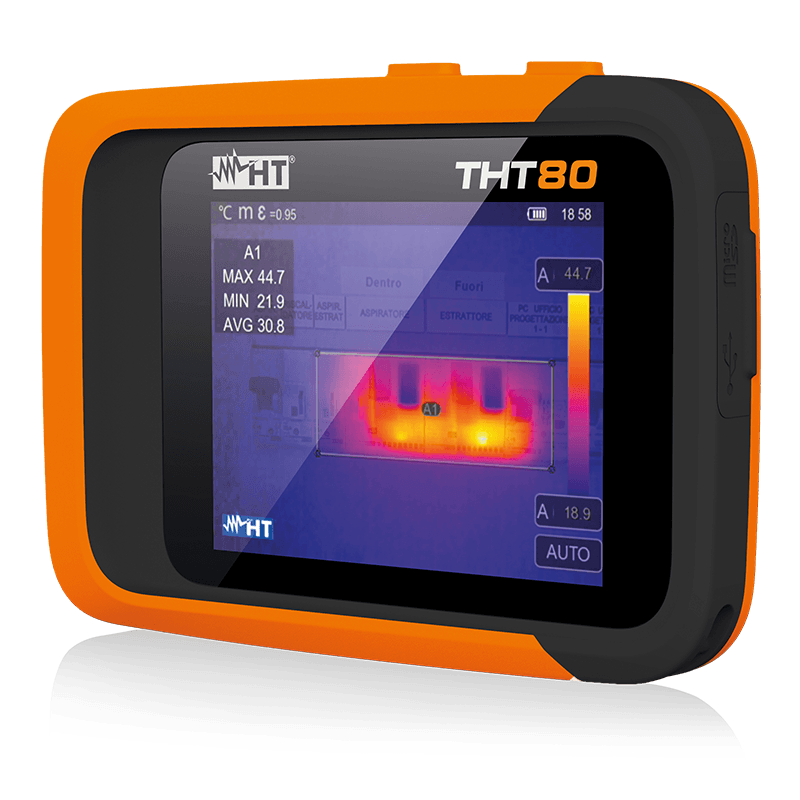

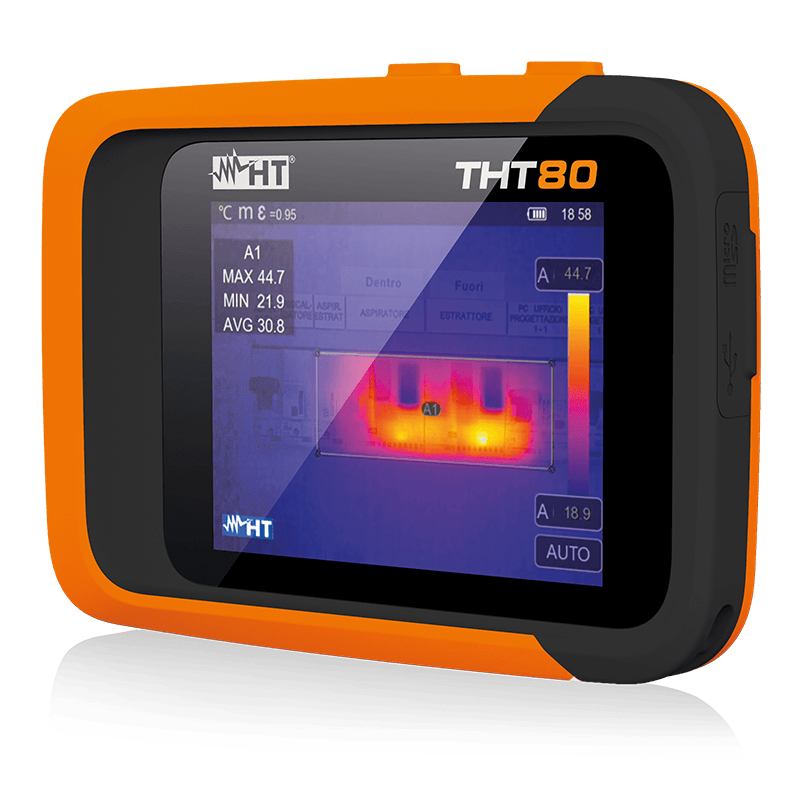

THT80 is the new compact professional thermal camera equipped with a high resolution 120x90pxl
IR sensor, a measuring range of -20°C ÷ 550°C and a field of view of 50° x 37° which makes it
suitable for use in frequent hydraulic, mechanical or electrical maintenance.
It is also equipped with the AutoFusion function and a large color display with high brightness
capacitive touch-screen, for immediate use, as well as being usable through the new and
convenient HT Pro Camera application.
IR Resolution: 120 x 90 pxl
Temperature range: -20° ÷ 550°C
Image frequency: 50Hz
Thermal sensitivity / NETD: '<'0.05°C @ 30°C / 50mK
Field of view (FOV): 50° x
37°
